SOLAR SIMULATOR X-SOL 1208M | SOLAR SIMULATION SYSTEM (X-SOL 1208M)
페이지 정보
작성자 디티엑스 작성일22-02-14 11:24 조회411회 댓글0건본문

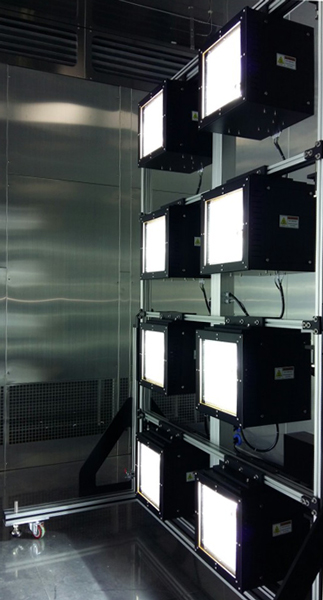

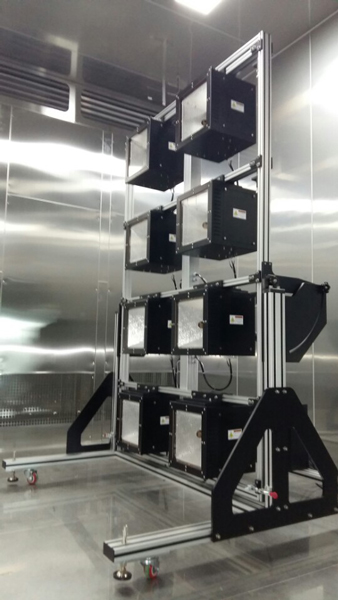

SOLAR SIMULATION SYSTEM (X-SOL 1208M)
|
|
APPEARENCE
|
|
|
| Lamp | Metal Halide Lamps |
| Luminary Quantity | 8 Sets |
| Lamp life time | 1.000 ~ 1,500 Hours (typical) |
| Warming Up | 2 Minute |
|
Option |
Irradiation angle adjustment unit |
|
EPS Unit |
Microprocessor controlled |
| Light Output Adjustment | 50 ~ 100 % |
|
Lamp On/Off |
The lamp is On and Off seperately with main power |
| Spectram Match | Class B |
| Non-Uniformity | Class C |
| Temporal Instability | Class C |
|
Power input |
Free Voltage 100 ~ 230 V, 50/60 Hz |
|
Dimension |
2,475 (H) x 1,600 (W) x 1,600 (D) mm |
|
Weight |
Luminary Frame : 350 Kg, EPS Unit : 400 kg |
|
Safety |
Automatic power off feature when cover opened or overheated during system operation |
| Class | BCC |
SPECIFICATION
* 고객사의 요청에 따라, 다양한 주문형 제품도 제작합니다.
